Measurement Range：3 phase check for AC 90V ~ AC 600V (Sine Wave)
Operation Frequency：45Hz ~ 70Hz
Power Supply：AA 1.5V x 2
Safety Standard：
IEC 61010-1 CAT.IV 600V
IEC 61010-2-033
IEC 61010-031
IEC 61557-1
IEC 61557-7
Color change LED phase direction indication
TEMP./Humidity：
- Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
- Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight：
- 104(L)x74(W)x33(H)mm
- Approx. 310g (Excluding battery)

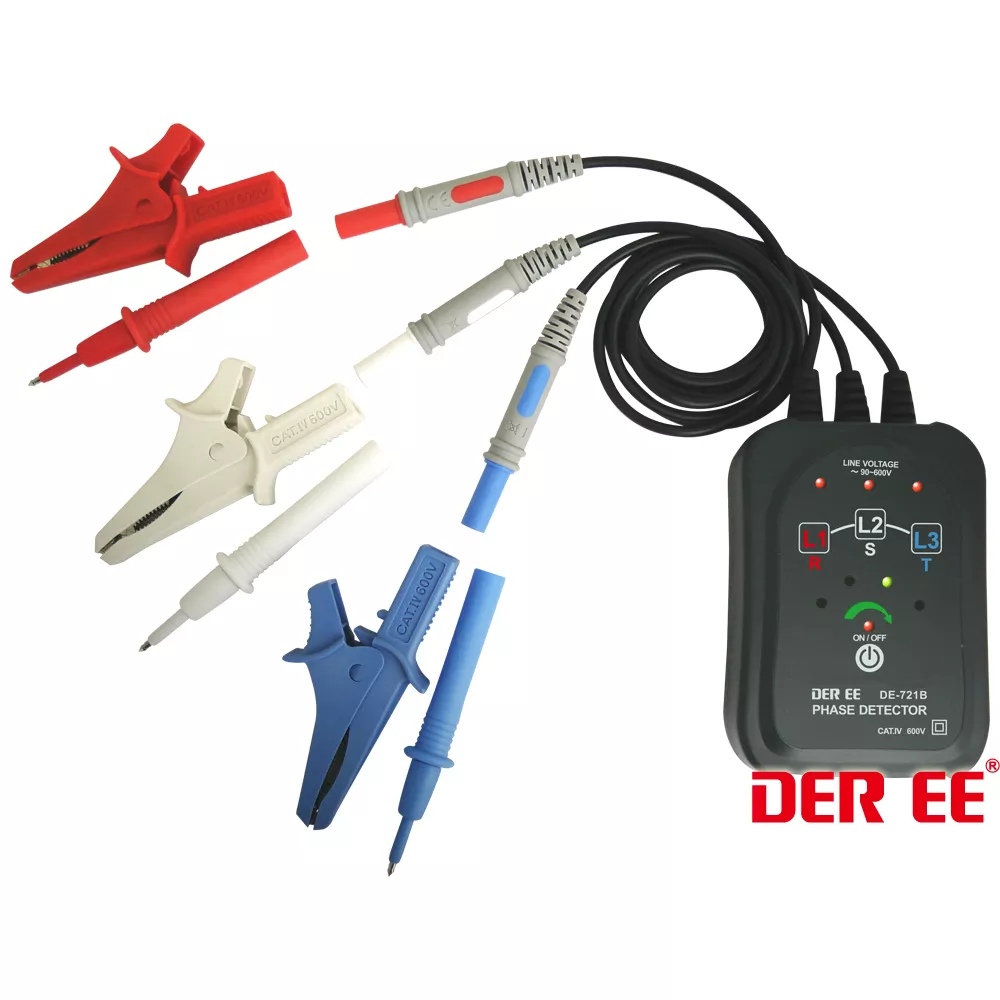

Accessories：
- Alligator Clip (red, white, blue) x 3
- Test leads + cap (red, white, blue) x 3
- Instruction Manual x 1
- Leather Gift Box x 1
- 1.5V AA battery x 2
